arcgisjs4加载geoserver的wmts
目的
arcgis js4 加载geoserver的wmts服务
一、怎么确定我在geoserver上发布的服务是wmts呢?
二、怎么找到请求地址,就像请求天地图地址那样?
参考：ArcGIS API for JavaScript 4.x加载GeoServer发布的WMTS服务
1 通过 wmts GetCapabilities
http://xxx.xxx.x.xxx:xxxx/geoServer/gwc/service/wmts?REQUEST=GetCapabilities
在浏览器中访问 WMTS 服务的 GetCapabilities URL，以验证配置是否正确。
👆会展示所有的wmts图层服务。
搜索你想要的那个图层，比如aha
http://xxx.xxx.x.xxx:xxxx/geoServer/gwc/service/wmts/rest/testt:aha_test222/{style}/{TileMatrixSet}/{TileMatrix}/{TileRow}/{TileCol}?format=image/png
{style}去哪里找呢?
http://xxx.xxx.x.xxx:xxxx/geoServer/gwc/service/wmts/rest/testt:aha_test222/{style}/{TileMatrixSet}/{TileMatrix}/{TileRow}/{TileCol}?format=image/png
{style} 就替换为aaaaaaa_test

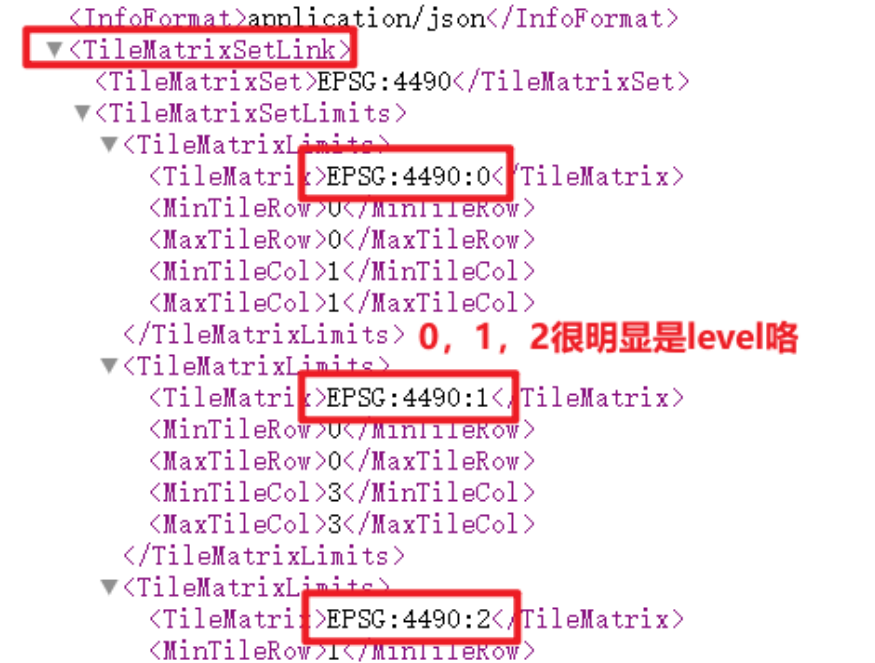

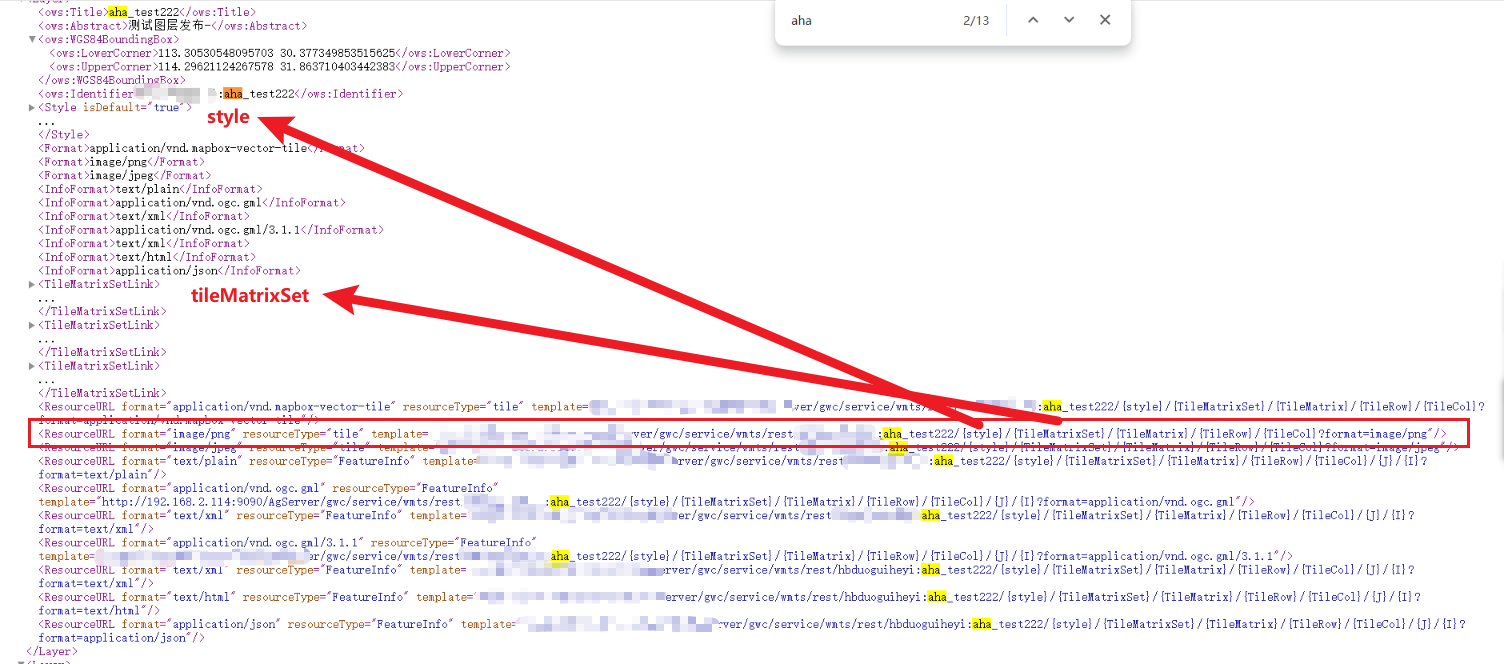

{TileMatrixSet}去哪里找呢? tilematrixset
http://xxx.xxx.x.xxx:xxxx/geoServer/gwc/service/wmts/rest/testt:aha_test222/aaaaaaa_test/{TileMatrixSet}/{TileMatrix}/{TileRow}/{TileCol}?format=image/png
{TileMatrixSet} 就替换为 EPSG:4490
{TileMatrix} 替换为 EPSG:4490:{TileMatrix}
最后得到：
http://xxx.xxx.x.xxx:xxxx/geoServer/gwc/service/wmts/rest/testt:aha_test222/aaaaaaa_test/EPSG:4490/EPSG:4490:{TileMatrix}/{TileRow}/{TileCol}?format=image/png
你可以写一个TileMatrix、row、col，然后在浏览器上看一眼。
2 (推荐) 通过瓦片图层预览

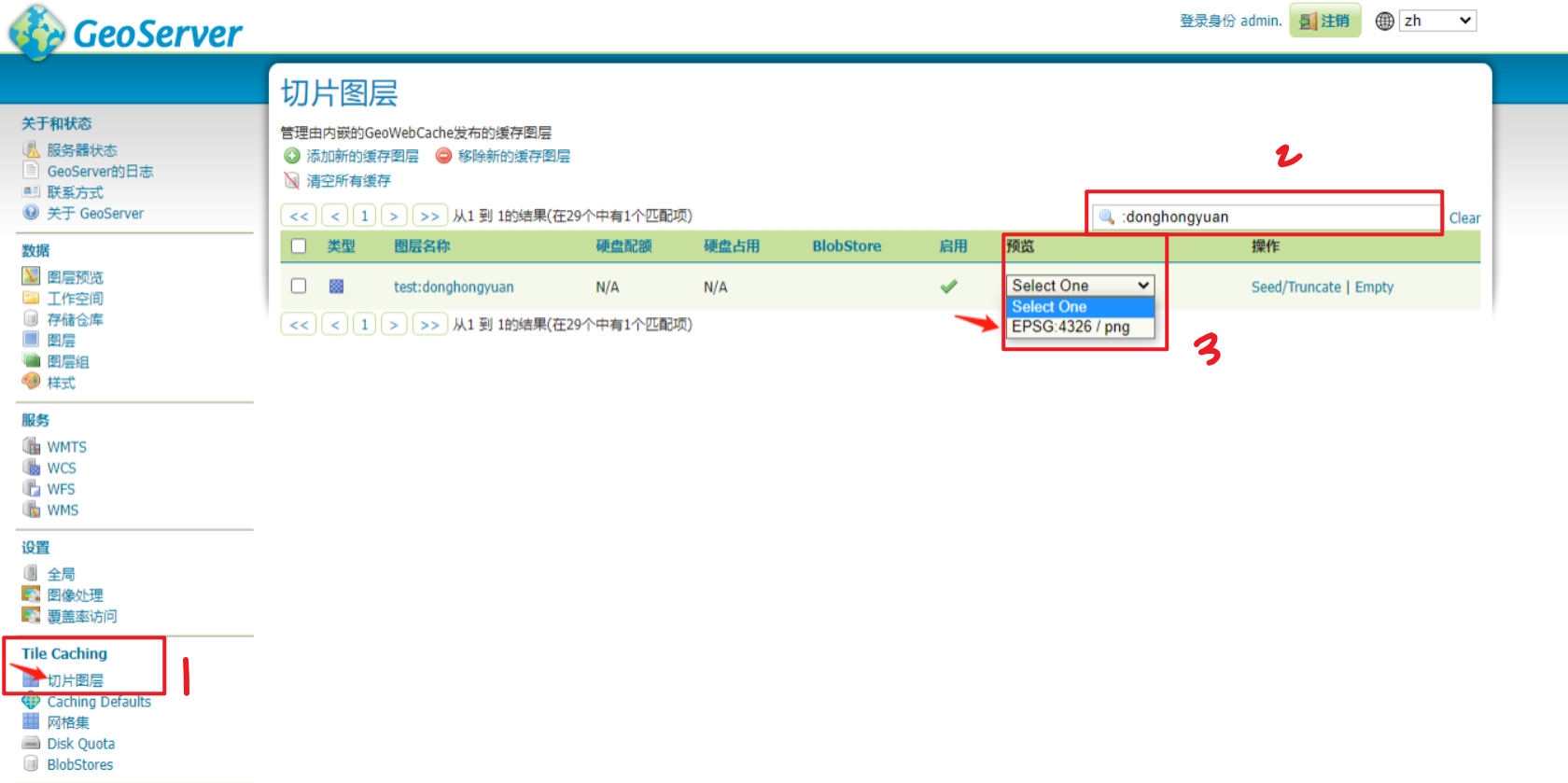

- 在geoserver -> 瓦片图层 中预览发布的图层

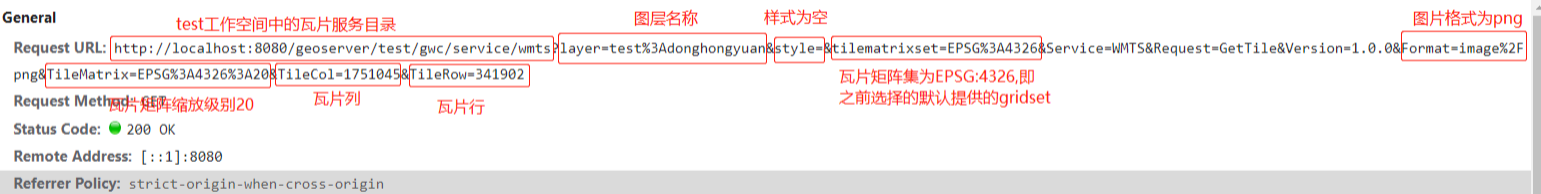

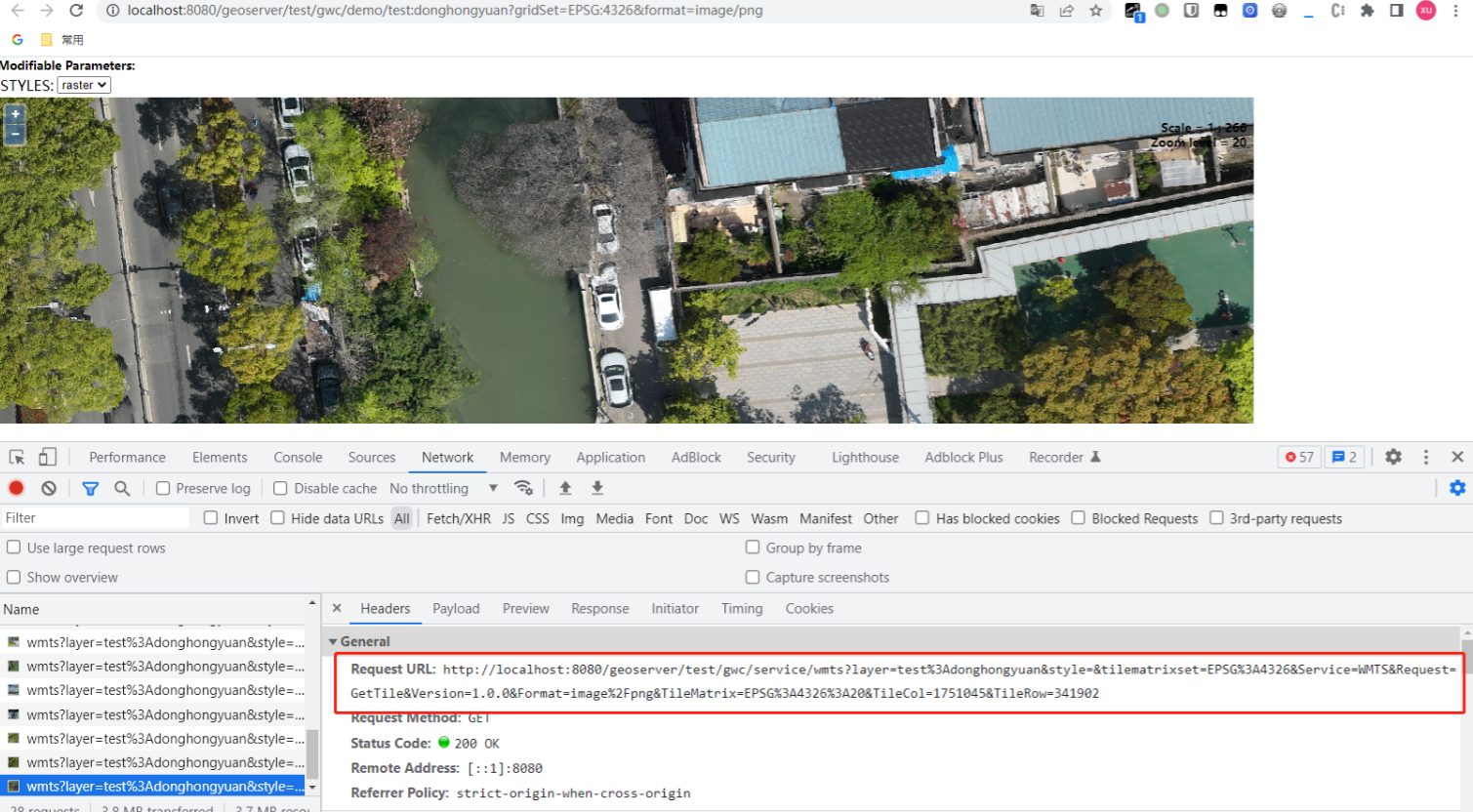

- 打开 控制台 看它的请求
- 打开 控制台 看它的请求
- 最后得到：
http://xxx.xxx.x.xxx:xxxx/geoServer/gwc/service/wmts/rest/testt:aha_test222/aaaaaaa_test/EPSG:4490/EPSG:4490:{TileMatrix}/{TileRow}/{TileCol}?format=image/png
http://xxx.xxx.x.xxx:xxxx/geoServer/gwc/service/wmts?layer=图层空间%3A图层名&style=&tilematrixset=EPSG%3A4490&Service=WMTS&Request=GetTile&Version=1.0.0&Format=image%2Fpng&TileMatrix=EPSG%3A4490%3A{TileMatrix}&TileCol={TileCol}&TileRow={TileRow}
// %3A 是冒号。
总结
两种方式最终得到的urlTemplate 都可以用。
三、arcgis js4 怎么加载 geoserver wmts?
用WMTSLayer还是WebTileLayer
用WMTSLayer
使用WMTSLayer.js
import WMTSLayer from "@arcgis/core/layers/WMTSLayer.js";
new WMTSLayer({
// url: "https://gibs.earthdata.nasa.gov/wmts/epsg4326/best", // url to the service
url: 'http://xxx.xxx.x.xxx:xxxx/geoServer/gwc/service/wmts',
activeLayer: {
// id: "SRTM_Color_Index",
id: '图层空间:图层名',
}
});
无解。
看请求是200，但是arcgis解析不了它。
用WebTileLayer
使用WebTileLayer.js
import WebTileLayer from "@arcgis/core/layers/WebTileLayer.js";
const configData = {
id:'3',
name:'geoserver_wmts_WebTileLayer',
type: "wmts",
// urlTemplate: "http://xxx.xxx.x.xxx:xxxx/geoServer/gwc/service/wmts/rest/testt:aha/{style}/{TileMatrixSet}/{TileMatrix}/{TileRow}/{TileCol}?format=image/png",
// urlTemplate: "http://xxx.xxx.x.xxx:xxxx/geoServer/gwc/service/wmts/rest/testt%3Aaha/testt%3Aahastyle/EPSG%3A4490/EPSG%3A4490%3A{level}/{row}/{col}?format=image/png",
urlTemplate: "http://xxx.xxx.x.xxx:xxxx/geoServer/gwc/service/wmts?layer=testt%3Aaha&style=&tilematrixset=EPSG%3A4490&Service=WMTS&Request=GetTile&Version=1.0.0&Format=image%2Fpng&TileMatrix=EPSG%3A4490%3A{level}&TileCol={col}&TileRow={row}",
layerTable:'aha',
layerType: "geoserverWMTS_WebTileLayer"
}
new WebTileLayer({
id: configData.id,
urlTemplate: configData.urlTemplate,
tileInfo: tileInfo4490,
spatialReference: this.view.spatialReference,
title: configData.name,
});

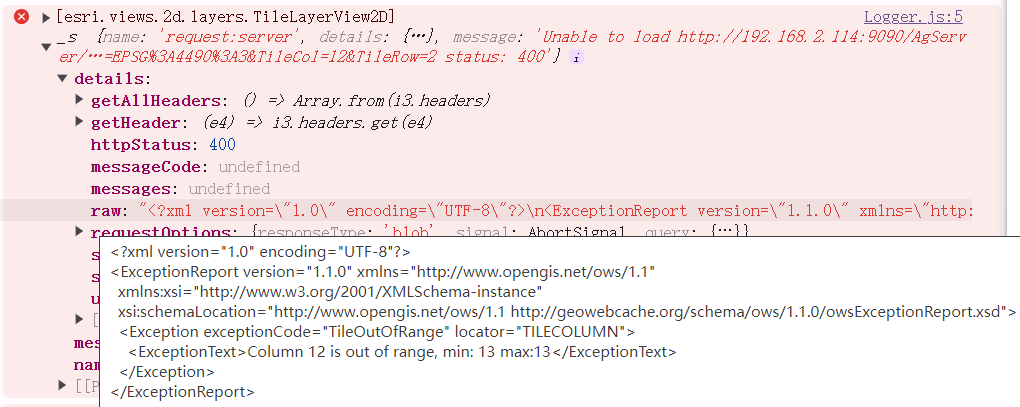

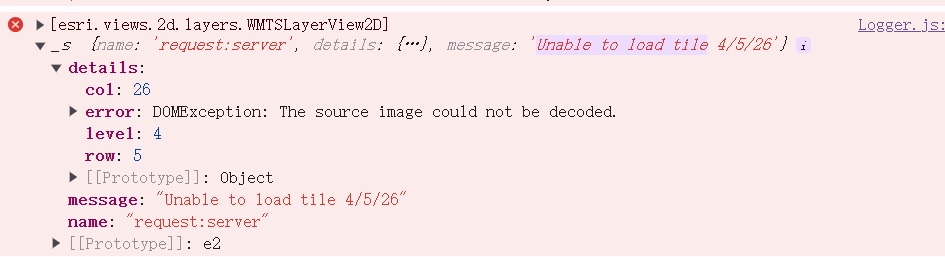

tileOutOfRange报错
- 出现的原因1:查看范围超出影像数据的范围?
如果是因为查看范围超出了影像数据的范围，这种报错，好像无所谓。
你去查看影像所在的范围，还是能查看到影像的。
- 出现的原因2: geoserver的gridset和WebTileLayer的tileInfo没对上
我测试了geoserver的gridset用4490 ，WebTileLayer的tileInfo用天地图的就会报这个错误。
所以解决方法就是让两者一致咯。
WebTileLayer.tileInfo.lods 从哪里拿?
4490的lods
如果是geoserver发布的wmts切片需要用到WebTileLayer -> tileInfo -> lods ,
则直接去geoserver的 gridset copy 对应的过来就行了。
export const initialExtent = {
xmin: -180,
ymin: -90,
xmax: 180,
ymax: 90,
spatialReference: {
wkid: 4490,
}
};
export const fullExtent = {
xmin: -180,
ymin: -90,
xmax: 180,
ymax: 90,
spatialReference: {
wkid: 4490,
}
};
export const lods = [
{
level: 1,
resolution: 0.3515625,
scale: 139770566.00717944
},
{
level: 2,
resolution: 0.17578125,
scale: 69885283.00358972
},
{
level: 3,
resolution: 0.087890625,
scale: 34942641.50179486
},
{
level: 4,
resolution: 0.0439453125,
scale: 17471320.75089743
},
{
level: 5,
resolution: 0.02197265625,
scale: 8735660.375448715
},
{
level: 6,
resolution: 0.010986328125,
scale: 4367830.1877243575
},
{
level: 7,
resolution: 0.0054931640625,
scale: 2183915.0938621787
},
{
level: 8,
resolution: 0.00274658203125,
scale: 1091957.5469310894
},
{
level: 9,
resolution: 0.001373291015625,
scale: 545978.7734655447
},
{
level: 10,
resolution: 0.0006866455078125,
scale: 272989.38673277234
},
{
level: 11,
resolution: 0.0003433227539062,
scale: 136494.69336636632
},
{
level: 12,
resolution: 0.0001716613769531,
scale: 68247.34668318316
},
{
level: 13,
resolution: 0.0000858306884766,
scale: 34123.67334161145
},
{
level: 14,
resolution: 0.0000429153442383,
scale: 17061.836670805726
},
{
level: 15,
resolution: 0.0000214576721191,
scale: 8530.918335382985
},
{
level: 16,
resolution: 0.0000107288360596,
scale: 4265.45916771137
},
// {
// level: 17,
// resolution: 0.0000053644180298,
// scale: 2132.729583855685
// },
// {
// level: 18,
// resolution: 0.0000026822090149,
// scale: 1066.3647919278426
// },
// {
// level: 19,
// resolution: 0.0000013411045074,
// scale: 533.1823959440429
// },
// {
// level: 20,
// resolution: 0.0000006705522537,
// scale: 266.59119797202146
// },
// {
// level: 21,
// resolution: 0.0000003352761269,
// scale: 133.2955990058892
// },
// {
// level: 22,
// resolution: 0.0000001676380634,
// scale: 66.64779948306612
// },
// {
// level: 23,
// resolution: 0.0000000838190317,
// scale: 33.32389974153306
// },
// {
// level: 24,
// resolution: 0.0000000419095159,
// scale: 16.66194989064501
// },
];
export default {
dpi: 96,
rows: 256,
cols: 256,
compressionQuality: 0,
origin: {
x: -180,
y: 90,
},
spatialReference: {
wkid: 4490
},
lods,
};
